TMC-1-Penta
Monitor Controller for NTP Penta 720, DAD AX32, and Avid MTRX

Drawing of TMC-1

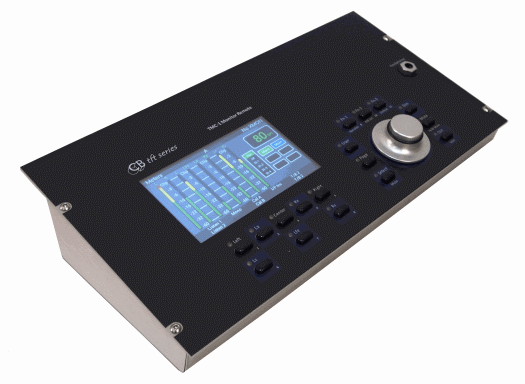

TMC-1-S6 module for S6 (knob size module)
Drawing of TMC-1-S6


Design Consideraltions
The TMC-1 is available for four different systems, the Avid XMon, DAD AX32 now, and for early next year the Trinnov DMon and CB AMon.
We have four main objectives when we started to designing the TMC-1 remote
1) Make the best possible monitor control interface
2) Provide a unified user interface for all systems, large and small.
3) Include Talkback, Listen back, and cue sends
4) Include automation features for ADR and ISDN

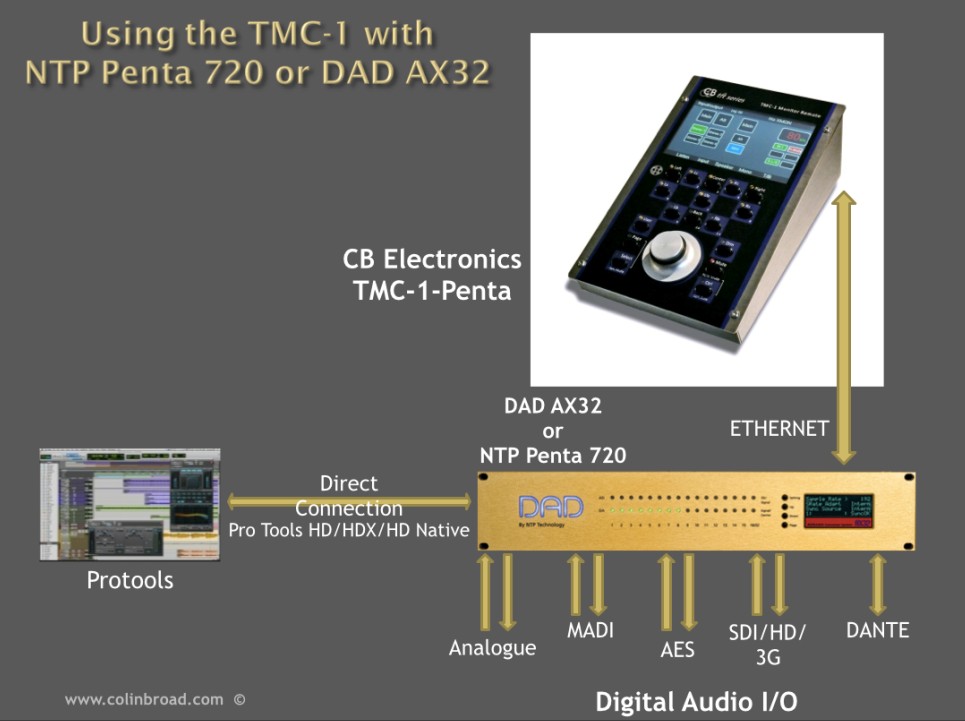

The NTP Penta 720 or DAD AX32 must be one of the most flexible digital audio interfaces available, with the TMC-1 interface and software you can control any system from 1 to 64 speakers.
The TMC-1 is not a remote to the NTP Dadman software but provides a framework for you to define your own monitoring solution.
* Also available TMC-XMon for Avid XMon
* Click here to see details on the TMC-1-DMon for use with the Trinnov D-Mon
See what users say
Halo studio review
Special features of this controller include
* ADR-style control of Talkback, Listen-back, Studio L/S and Control Room L/S from play and record GP Inputs or LTC and MTC inputs.
* Stem style monitoring with up to 6 stems each of which can be up to 12 channels wide.
* Monitoring of all cue sends
* Studio playback of any input
* Click here for more Information

TMC-1 Configuration Software

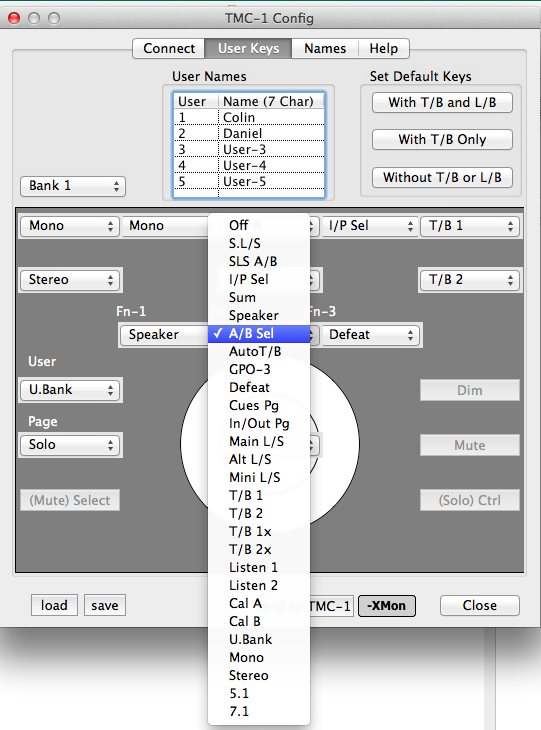

TMC-1 Keys

Buy Online - TMC-1-Penta available on 2 week delivery

Please check for a local distributer before ordering direct
All prices include delivery by courier 1-3 days depending on location, VAT is included for UK Sales, EU Sales are with/without VAT, no VAT is charged or "Rest of World" but you may have to pay local import charges.
If you Select "Europe Excluding VAT" you must email your VAT/TVA Number, Company Name and Address or include it with your order
Please include your telephone number for the courier.
TMC-1-Penta TMC-1-Penta-S6
Destination UK / EU / World
Destination UK / EU / World

TMC-1-Penta Firmware
tmc1-penta-17815.bin Aug 2017 - OSC remote Control Added
tmc1_osc.zip Aug 2017 OSC Documentation and sample files for TouchOSC
tmc1-penta-17622.bin June 2017 -Bug fix
April 2017 - Updated for use with TMC-1v4, Auto Resume Listen back, Advanced Menu 24 added to disable I/O Nameing by the TMC-1
tmc1-penta-17314.bin 14 March 2017 - Updated for use with current TMC-1v3 software
Windows and Mac Software
tmc1-penta4.zip Updated to allow 32 items in the palette, use with TMC-1-Penta software after 21st July 2017
tmc1-penta2.zip Monitor configuration tool(Win/Mac) - define inputs and outputs for use with TMC-1 software 8 inputs, a 16 input pallet 3 outputs with up to 64 speakers talkback/listenback/slate/AFL/4 cue sends/3 cue inputs engineer phones output and cue in/out labels
TMC-1v4.zip Update setup program (Win/Mac) for use with TMC-1 software after 22nd March 2017
Now includes cocoa version for latest OS-X

TMC-1v3.zip Update setup program (Win/Mac) for use with TMC-1 software after 3rd March 2017
midiupd.zip Use Midiupd (Mac or Windows) to update the TMC-1 firmware via USB Port
Now includes cocoa version for latest OS-X

tmc1-keynote.zip Mac Presentation file TMC-1-Penta
NTP-Emulator.zip NTP-Penta/DAD AX32 emulator - for test use only
English Manuals and Data Sheets Français
TMC-1-Penta Information Sheet (296KB) Two page information sheet on the TMC-1-Penta
7/April/2015
Informations TMC-1-Penta
TMC-1-Penta User Guide.pdf (676KB) Current User guide Use with the TMC-1 Reference below TMC-1-Penta user guide with description of TMC1-Penta2 Monitor configuration tool and a case study of a 16 speaker 7.1.4 system using a Dolby RMU (Pinewood studio 6). Manuel TMC-1_Penta
TMC-1 Reference.pdf (676KB) TMC-1 Reference
Release 4.0
Manuel TMC-1 de ReferenceV5
TMC-1 SPL Calibration.pdf (676KB) Copy from the TMC-1 Reference Guide describing how to calibrate the TMC-1 speakers Calibration des niveaux d'écoute
TMC-1 Configuration Guide.pdf (676KB) TMC-1 Configuration Guide

TMC-1 Guide de configuration
TMC-1 Programming Guide.pdf Step by step programming instructions
16/May/2015
Manuel MidiUpd.
Mise à jour pour: TMC-1, A-Mon et XPand
Links to related pages
tmc1xmon.html Details on the TMC-1-XMon for Avid XMon
tmc1amon.html
Details on the TMC-1-A-Mon for CB Electronics A-Mon
tmc1dmon.html Details on the TMC-1-DMon for Trinnov D-Mon

you may download WinZip95 here
