34 I/P, 27 O/P Analogue Monitor Controller for Atmos/Auro, 7.1, 5.1 and Stereo

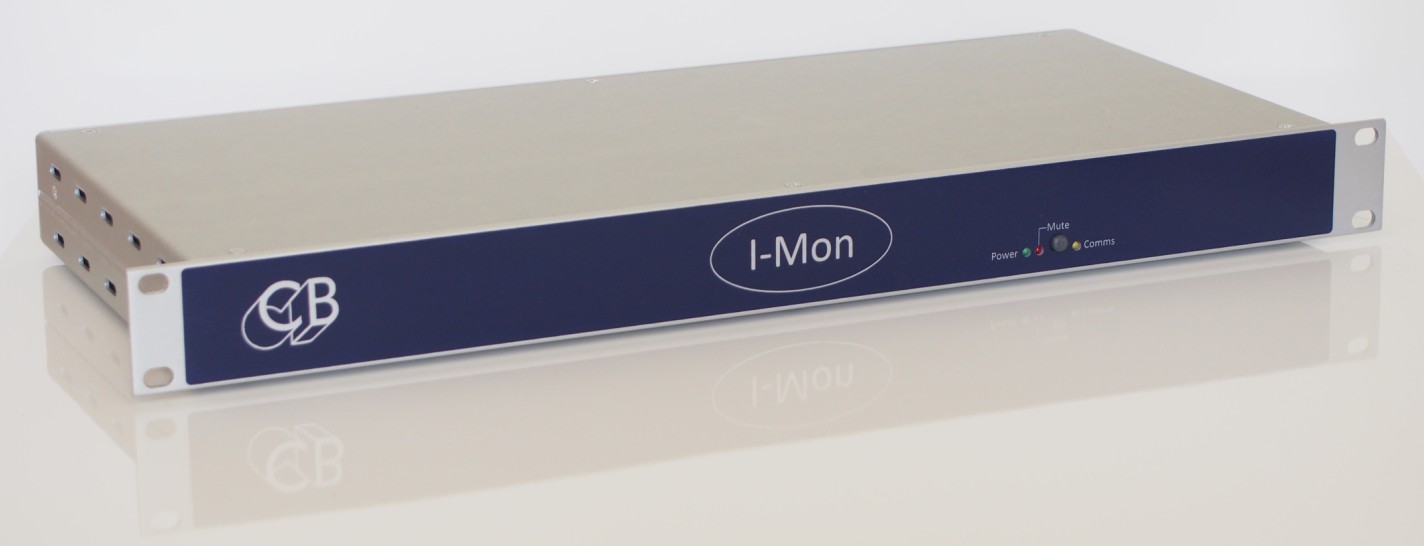

I-Mon Photo

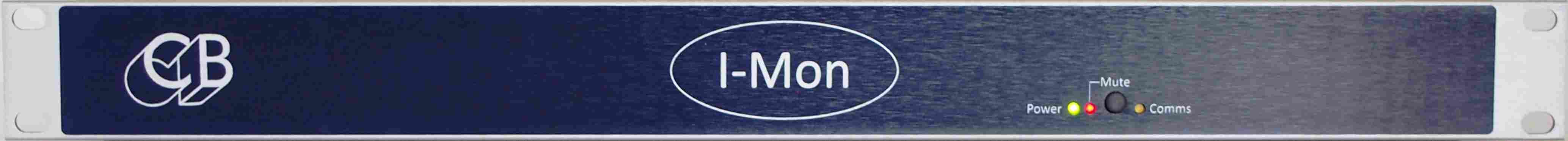

I-Mon Photo

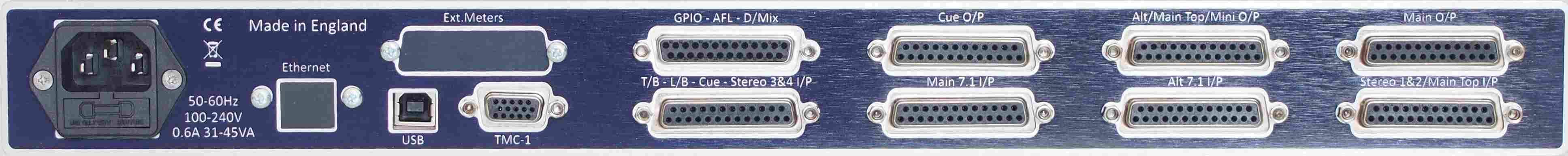

I-Mon Photo

TMC-1 Photo TMC-1-S6 Photo

Design Considerations

Bassed on the A-Mon the I-Mon analogue monitor control unit is housed in a 1U rack mount box. Designed for any format from stereo to 12 or 14 channel immersive audio. This versatile unit is designed to provide a cost effective solution to installing immersive monitoring in smaller studios. The I-mon may be configured with either 12 or 14 channel Main input and Main output and with either 1 or 2 talkback and listen mic inputs.

Basic Specification:
  • Three/Two Control Room speaker selections
  • Six Inputs: 1x 7.1.4, 1x 7.1 and 4 stereo Inputs
  • Cue Inputs: 3 or 2 stereo inputs - available on all cue outputs
  • Four Cue outputs - Studio L/S, Headphones, Cue1, Cue 2
  • One/Two Talkback microphone inputs Engineer and Producer
  • One/Two Listen back microphone inputs
  • Stereo AFL Input
  • Down mix Output, Slate output and GPIO
I-Mon pricing (Introductionary Offer), (Excluding VAT and Delivery), available on 2 week delivery

Please check for a local distributer before ordering direct
I-Mon Only £1,600 I-Mon + TMC-1 bundle £2,500 I-Mon + TMC-1-S6 bundle £2,600

I-Mon Firmware
Imon-18620.bin June 2018 - Initial Software Release
TMC-1-IMon Firmware
TMC1-IMon-18521.bin/a> March 2018 - Updated for use with TMC-1v5 software, with OSC
Software and Documentation Package ( Firmware, Windows and Mac Software, pdf documentation) Update setup program (Win/Mac) for use with TMC-1 software after 1st March 2018 Aug 2017 OSC Documentation and sample files for TouchOSC Use Midiupd (Mac or Windows) to update the TMC-1 firmware via USB Port
Now includes cocoa version for latest OS-X

English Manuals and Data Sheets Français
I-Mon User Guide.pdf Initial Release
Manuel I-Mon
imon-25d.pdf Individual 25pin D pinnouts for I-Mon
Brochage des connecteurs Sub-D 25 I-Mon
TMC-1-IMon User Guide.pdf (676KB) TMC-1 User Guide
Release 2.0
18/June/2016 Match new s/w, Setup and technical information moved to new TMC-1 Tech Guide
Manuel TMC-1-I-Mon
TMC-1 Reference.pdf (676KB) TMC-1 Reference Guide
Release 4.0
28/March/2016 March XPand:- new user keys and menu
Manuel TMC-1 de ReferenceV7
TMC-1 SPL Calibration.pdf (676KB) Excerpt from the TMC-1 Reference Guide describing how to calibrate the TMC-1 speakers

Calibration des niveaux d'écoute
TMC-1 Programming Guide.pdf Step by step programming instructions
Manuel MidiUpd.
Mise à jour pour: TMC-1, I-Mon et XPand
