USB422v

Dual RS-422 USB Interface with Video Sync Reference and GPIO

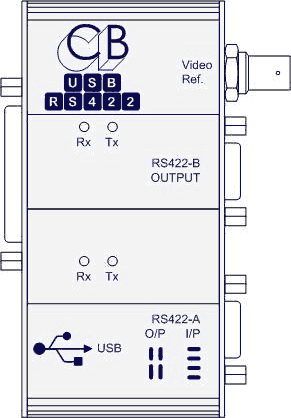

usb422v (17K)

further information please visit USB Product Page where you can download drivers and software


Main Features
Two RS422 ports, Connections to Standard Sony RS-422 pin-out
Video Sync Reference Input
6 Buffered ttl Inputs and 4 Open Collector outputs
Port A may be configured as a Controller (O/P)or Device (I/P) using internal links
Port B is configured as a Controller (O/P)
Windows 98, ME, 2000, XP, 7, 8 and 10 Drivers
MAC OS-X Driver
Linux Driver
Tx and Rx LED's on both ports
Slew Rate Limited RS422 drivers to minimise EMI and reduce reflections
Sample Windows Program on website
Rugged extruded aluminum box
WEEE/RoHS Compliant

Design
RS422 Interface

Slew Rate Limited RS422 drivers to minimise EMI and reduce reflections on incorrectly terminated connections. Pin-out and termination as per standard Sony connection. Port A may be configured as a Device (I/P) or as a Controller (O/P). Port B is configured as a Controller (O/P), to use as a Device a Tx/Rx invert lead must be used.


USB Interface

CB Electronics have for a number of years used USB-RS232 interfaces both with and without RS232-RS422 converters. In designing the USB422 we used the experience with many different manufactures to chose the best combination of hardware and drivers.
Drivers for Windows 98, ME, 2000 and XP with MAC OS-X and Linux are all available from our web site. The USB422 windows drivers are optimised for minimum latency. When installed on Windows the port numbers are set to the last two free port numbers, this may be changed using the driver parameters.


Video Input

The video sync input accepts both Bi-Level and Tri-Level syncs that are converted to a frame rate square wave and is connected to the Port A CTS Interrupt input. The CTS input level after the change interrupt indicates the video field.


Test Program

A test programme that provides both machine control and a virtual machine is available from our web site. The program locks both the virtual machine (Port-A) and machine control (Port-B) to video syncs. The program is written in Delphi (Object Pascal).


Drivers

Drivers for Windows 98, ME, 2000 and XP with MAC OS-X and Linux are all available from our web site (www.colinbroad.com/cbsoft/usbdriver.html ).The USB422 windows drivers are optimised for minimum latency. When installed on Windows the port numbers are set to the last two free port numbers, this may be changed using the driver parameters.


GPIO

A 25 way 'D' connector allows access to the 6 Buffered ttl level inputs and 4 Open Collector Outputs. The six inputs are connected to DSR, DCD and RI on both ports. The four outputs are connected to RTS and DSR outputs on both ports.


usb422v (6K) usb422 (6K)

Size

4.4 x 2.1 x 1.2 (112 x 55 x 31) excluding connectors




further information please visit USB Product Page where you can download drivers and software

For further information on any of these products please contact:
CB Electronics
Tel: +44 (0)118 9320345 or Fax: +44 (0)118 9320346
or Email Support

PDF version of the manual available from the Customer Area/Manuals section
